SSR 48 Series Solid State Relay
Solid State Relays are electronic devices used to switch resistive or inductive loads and have several advantages over standard relays or electromechanical contactors.
Since they have no moving parts, there is no wear or mechanical operating noise. The zero-crossing actuator drastically reduces electrical switching noise. Electrical isolation between input, output, and metal housing simpli es and ensures safer installation and maintenance. Properly installed, they can operate without failure for many years.

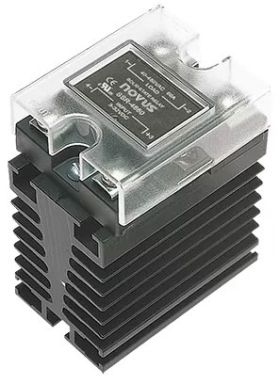

SSR solid-state relays can be supplied with or without the heatsink.
*Product without UL
Since they have no moving parts, there is no wear or mechanical operating noise. The zero-crossing actuator drastically reduces electrical switching noise. Electrical isolation between input, output, and metal housing simpli es and ensures safer installation and maintenance. Properly installed, they can operate without failure for many years.
SSR solid-state relays can be supplied with or without the heatsink.
SSR-4810-Series Solid State Relays Specifications
Parameters | Units | Models | |||
---|---|---|---|---|---|
SSR 4810* | SSR 4825 | SSR 4840 | SSR 4860 | ||
Load Current | Arms | 10 | 25 | 40 | 60 |
Load Voltage | Vrms | 75 to 480 | 40 to 480 | ||
Conduction Voltage | Vrms | 1,1 to 1,5 | 1,6 to 1,8 | ||
Leakage Current | mArms | <14 | <5 | ||
Frequency | Hz | 47 to 70 | 47 to 63 | ||
dv/dt | V/µs | 50 to 200 | 300 | ||
Control Voltage | Vdc | 4 to 32 | 3 to 32 | ||
Control current | mAcc | 5 to 12 | 6 to 25 | ||
Switching Time | ms | <10 | <10 | ||
Trigger | Zero Crossing | Zero Crossing | |||
Isolation | Vrms | 4000 | 2000 | ||
Housing Temperature | °C | -30 to 80 | -40 to 80 |
